Drive Medical Bariatric Homecare Bed With a Wider Frame
The Drive Lightweight Bariatric Homecare Bed combines a wider sleep surface, full-electric positioning, and substantial load support with a frame designed to simplify delivery and assembly. Available in 42", 48", and 54" widths, this full electric bariatric hospital bed gives users more room while helping caregivers manage positioning and personal care.
Each model provides powered head, foot, and overall bed-height adjustment through an easy-to-use hand pendant. The split square-tube steel slat deck supplies strong, no-sag mattress support, while the scratch-resistant wood-grain bed ends give this homecare bed a less institutional appearance.
Drive states that the frames are up to 100 lbs lighter than many conventional bariatric offerings, depending on bed width. This makes the system easier for qualified providers to transport, maneuver, assemble, and disassemble without sacrificing the verified safe working load for the selected model.
Why Choose This Drive Medical Bariatric Hospital Bed?
The Drive Medical bed combines a wider sleeping area with full-electric positioning, durable construction, and width-specific load capacities for homecare environments.
Wider Support With Easier Handling
- ✓ Three sleep-surface widths: Choose a 42", 48", or 54" wide by 80" long configuration.
- ✓ Width-specific capacity: Safe working loads range from 600 lbs to 1,000 lbs, depending on the selected model.

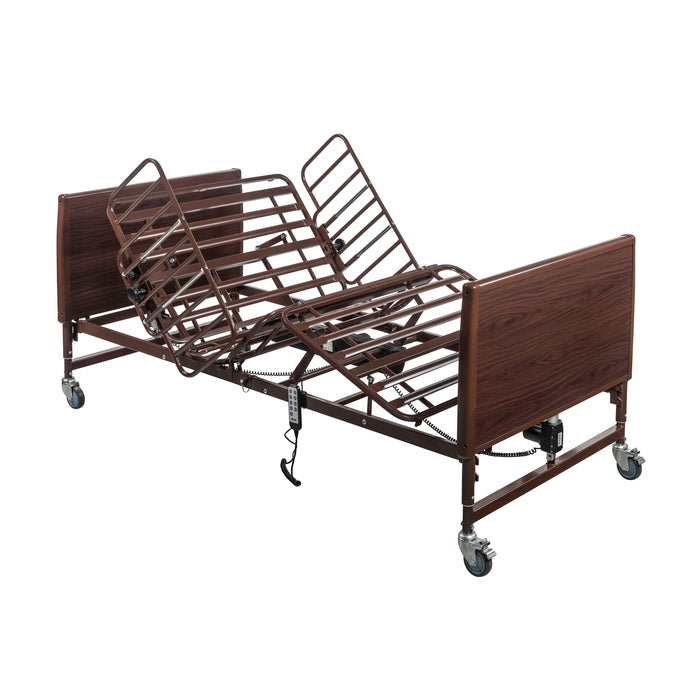

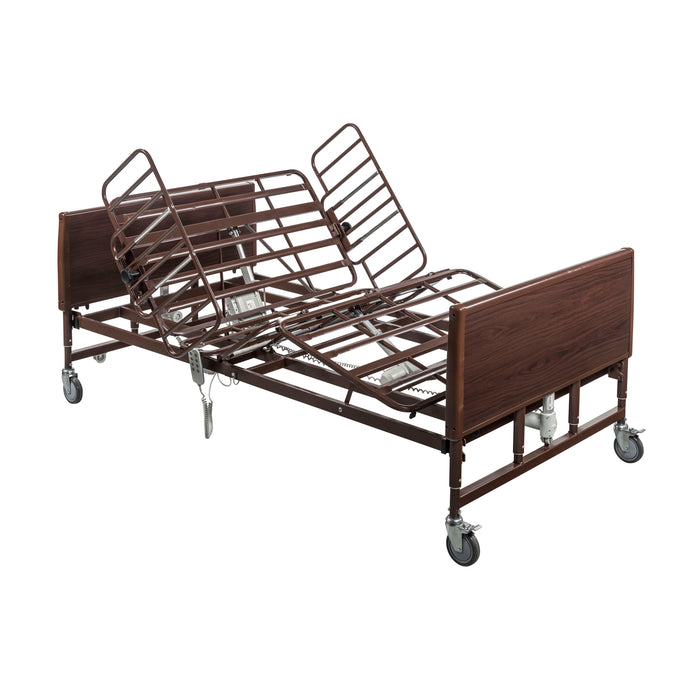

- ✓ Full-electric adjustment: Powered controls adjust the head section, foot section, and overall frame height.
- ✓ Hi/Lo positioning: Motors in the bed ends raise or lower the frame to support caregiver access and individualized positioning.

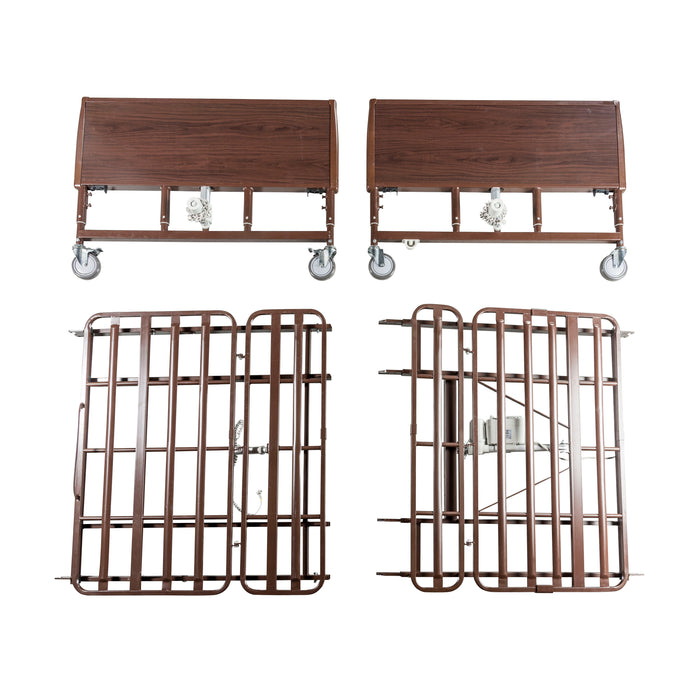

- ✓ Lightweight split frame: The frame is designed for less cumbersome delivery, handling, assembly, and storage.
- ✓ Tool-free frame assembly: No deck links need to be connected, and the frame can be assembled by one qualified installer.

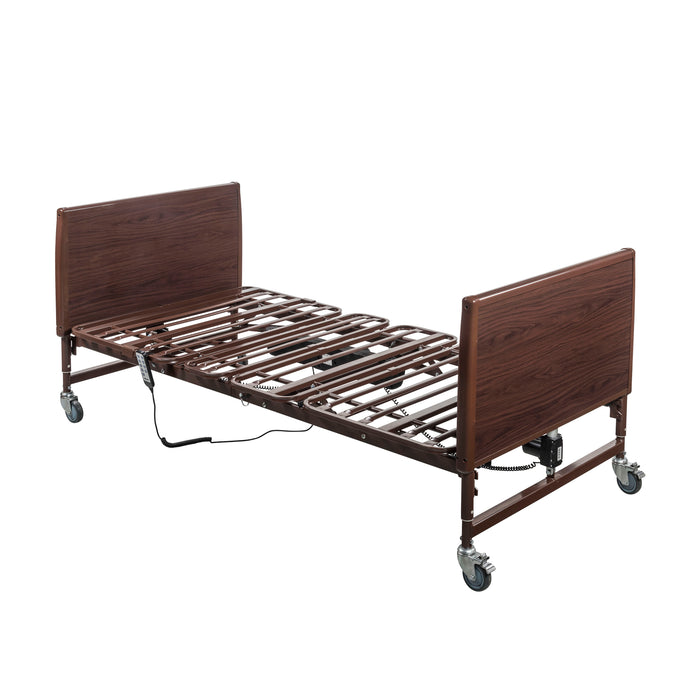

- ✓ Strong slat deck: Square-tube steel construction provides durable, no-sag support and an easier-to-clean surface.
- ✓ Large illuminated pendant: Glow-in-the-dark controls and LED power and lockout indicators support straightforward operation.
- ✓ Scratch-resistant bed ends: Rich brown wood-grain panels provide a durable, home-friendly appearance.

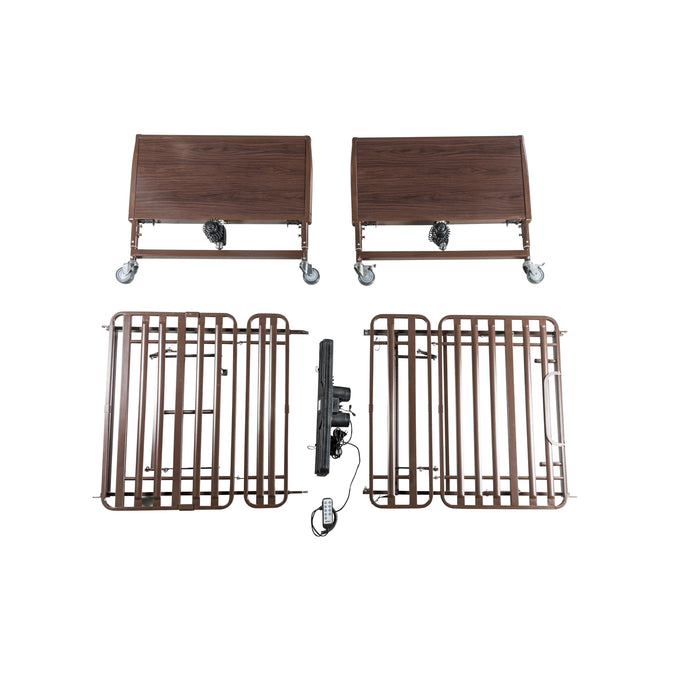

- ✓ UL-approved motor: The self-contained motor is designed to reduce weight and operating noise.
- ✓ Optional accessories: Compatible half rails and selected battery-backup equipment are available separately.
Explore more Drive full electric hospital beds or compare additional Hi/Lo homecare beds.
Bariatric Homecare Bed Sizes and Weight Capacities
Select the model according to the required sleep-surface width, safe working load, and rail package. Safe working load includes the occupant, mattress, rails, accessories, and any other equipment placed on the bed.
| Model |
Sleep Surface |
Safe Working Load |
Shipping Weight |
Rail Option |
| 15300LW |
42" W x 80" L |
600 lbs |
255 lbs, 2 boxes |
None |
| 15300LW-HR |
42" W x 80" L |
600 lbs |
Package dependent |
Half rails included |
| 15302LW |
48" W x 80" L |
750 lbs |
294 lbs, 3 boxes |
None |
| 15302LW-HR |
48" W x 80" L |
750 lbs |
Package dependent |
Half rails included |
| 15303LW |
54" W x 80" L |
1,000 lbs |
312 lbs, 3 boxes |
None |
| 15303LW-HR |
54" W x 80" L |
1,000 lbs |
Package dependent |
Half rails included |
Drive Lightweight Bariatric Bed Specifications
| General Specifications |
| Brand |
Drive Medical / Drive DeVilbiss Healthcare |
| Bed Type |
Full-electric bariatric homecare bed |
| Available Widths |
42", 48", and 54" |
| Sleep-Surface Length |
80" |
| Casters |
Four 5" casters, two locking and two non-locking |
| Color |
Brown |
| 42-Inch Model 15300LW Dimensions |
| Overall Length |
87.79" |
| Overall Width Without Rails |
42" |
| Overall Width With Rails |
49.37" |
| Height Range |
18" to 26" |
| Under-Bed Clearance |
14.5" to 22" |
| Maximum Patient Weight |
525 lbs within the 600 lb safe working load |
| Positioning and Electrical |
| Head Deck Angle |
0° to 60° |
| Foot Deck Angle |
0° to 17° |
| Electrical Input |
100-240 VAC, 50/60 Hz |
| Rated Current |
3.5 A maximum |
| Duty Cycle |
2 minutes on, 18 minutes off |
| Noise Level |
65 dB(A) or less |
| Mattress, Rails, and Standards |
| Mattress Requirement |
Width-matched 80" mattress with a minimum height of 5.5" |
| Optional Half Rails |
15021BV-LW, sold separately or included with -HR packages |
| Battery Accessory |
15302LWB for compatible 48" and 54" configurations, sold separately |
| Safety Standards |
IEC 60601-2-52, IEC 60601-1, IEC 60601-1-2, and IEC 60601-1-11 |
Drive Hospital Bed Mattress and Rail Compatibility
A mattress may not be included. Use an appropriately sized Drive hospital bed mattress that matches the selected 42", 48", or 54" frame width and the 80" sleep-surface length. The mattress must be at least 5.5" high and fit securely against the bed frame and any installed rails.
The 42" bed is compatible with Drive model 15301 basic foam mattress, 1500SC-42-FB ShearCare foam mattress, or 14030 Med Aire Plus system. Mattress suitability should be confirmed for the individual care plan and selected rail configuration.
Only compatible Drive DeVilbiss Healthcare rails should be used. Half rail 15021BV-LW is available separately and is also included with designated `-HR` packages. Drive states that its compatible rail accessories conform to applicable FDA entrapment guidance and ASTM standards when properly installed.
Compare other adjustable homecare beds for additional positioning and sizing options.
Frequently Asked Questions
Is this a full electric bariatric hospital bed?
Yes. The hand pendant controls the head section, foot section, and overall bed height. The exact controls and accessories depend on the selected model.
What is the weight capacity?
The 42" model has a 600 lb safe working load, the 48" model has a 750 lb safe working load, and the 54" model has a 1,000 lb safe working load. These totals include the occupant, mattress, rails, accessories, and optional equipment.
What is the patient weight limit for the 42-inch model?
The 42" model has a maximum patient weight of 525 lbs. The combined weight of the patient, mattress, accessories, and equipment must remain within the 600 lb safe working load.
Are the mattress and half rails included?
Package contents vary. Standard `LW` models do not include half rails, while `LW-HR` packages include half rails. A mattress may not be included, so confirm all package contents before ordering.
Does the bed include battery backup?
Battery backup is not included. Accessory 15302LWB is identified for compatible 48" and 54" models and is sold separately. Confirm compatibility before ordering.
Can the bed be used to transport a person?
No. The casters are intended for repositioning the unoccupied bed within the room for cleaning or access. Use an approved patient transport device when moving the occupant to another location.
