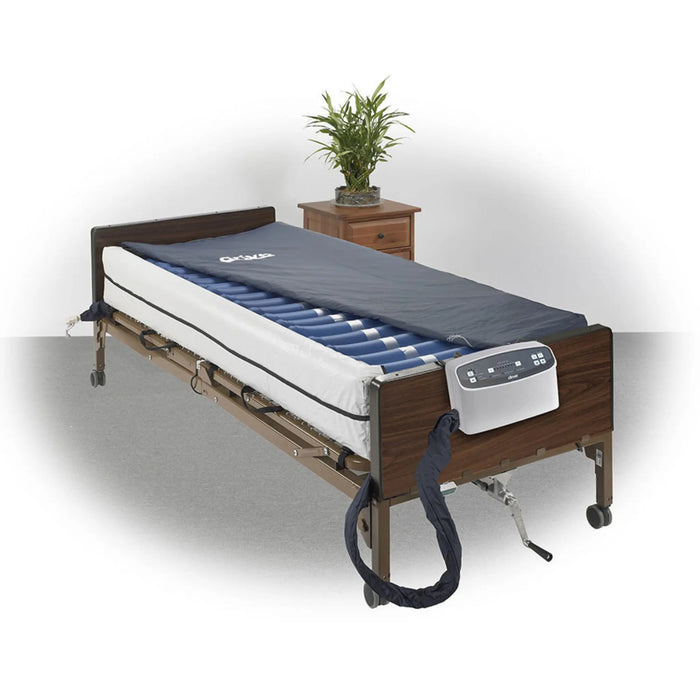

Drive Medical Med-Aire Plus: Alternating Pressure with More Support at the Bed Edge
The Drive Medical Med-Aire Plus 8" Alternating Pressure Low Air Loss Mattress System is designed for users who spend extended periods in bed and need changing air support without losing a firmer, more defined mattress edge.
Its 8-inch treatment cells alternate pressure beneath the user on selectable 10, 15, 20, or 25-minute cycles, while low air loss helps manage heat and moisture around the support surface.
Along both sides, a 10-inch static-defined perimeter creates a firmer boundary around the treatment area. Beneath the upper cells, a static 4-inch lower layer can retain air and continue providing support for up to 24 hours during a power outage.
For the user, that means changing air support with a more clearly defined edge around the mattress. For the caregiver, eight comfort and weight settings, AutoFirm, Seat/Fowler mode, static mode, alarms, and panel lock provide direct control from one digital system.
Med-Aire Plus Key Features
- ✓ Alternating pressure: Select 10, 15, 20, or 25-minute cycles
- ✓ Low air loss: Helps manage heat and moisture around the support surface
- ✓ 10-inch defined perimeter: Creates a firmer boundary along both sides
- ✓ Cell-on-cell construction: 8-inch treatment cells over a static 4-inch lower layer
- ✓ Eight comfort and weight settings: Adjust the support level from the control unit
- ✓ Up to 24 hours of retained lower-layer support during a power outage
- ✓ 450 lb weight capacity
Defined Perimeter and Cell-on-Cell Support
The defined perimeter is one of the key features of the Med-Aire Plus 14029DP. Static tubing runs along both sides of the mattress to create a firmer boundary around the treatment surface.
Inside that perimeter, 8-inch air cells provide the alternating-pressure surface. The care team can choose 10, 15, 20, or 25-minute cycles or select static mode when a consistent setting is required.
Below the treatment cells is a static 4-inch air-cell layer. If power is interrupted, this lower layer can retain air and continue providing support for up to 24 hours.
Low Air Loss and Caregiver Controls
The low air loss system supplies airflow through the mattress to help manage heat and moisture around the support surface. The removable four-way stretch cover is fluid resistant, low shear, and vapor permeable.

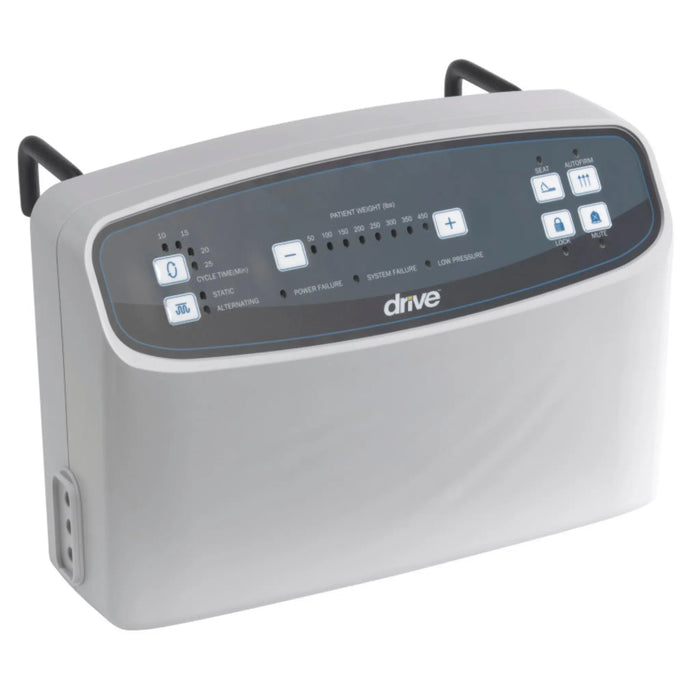

The digital control unit includes eight comfort and weight settings, alternating and static modes, AutoFirm, Seat/Fowler mode, panel lock, and audible and visual alarms for low pressure, system failure, and power failure.
Drive Medical 14029DP Specifications
| Product Overview |
| Brand |
Drive Medical |
| Product |
Med-Aire Plus Alternating Pressure and Low Air Loss Mattress System with Defined Perimeter |
| Model |
14029DP |
| HCPCS |
E0277 |
| Dimensions and Capacity |
| Overall Size |
36 in W x 80 in L x 10 in H |
| Treatment Cell Height |
8 in |
| Static Cell Base |
4 in |
| Defined Perimeter |
10 in deep static perimeter tubing along both sides |
| Weight Capacity |
450 lb |
| System Weight |
37.6 lb |
| Therapy and Controls |
| Therapy Modes |
Alternating pressure and static |
| Low Air Loss |
Integrated microclimate support |
| Cycle Times |
10, 15, 20, and 25 minutes |
| Pressure Range |
20 to 60 mmHg |
| Comfort Settings |
8 adjustable levels |
| Care Modes |
AutoFirm and Seat/Fowler |
| Alarms |
Audible and visual low-pressure, system-failure, and power-failure alarms |
| Control Unit |
Model 14029XP digital 3-outlet pump |
| Control Unit Size |
14.5 in x 5 in x 10 in |
| Control Unit Weight |
8 lb |
| Input Rating |
AC 120V, 60Hz, 12W, 1A |
| Cover, Construction, and Safety |
| Cover |
Removable, quilted, zippered 4-way stretch cover |
| Cover Properties |
Low shear, fluid resistant, and vapor permeable |
| Cell Construction |
Cell-on-cell with removable air cells and quick disconnects |
| Additional Features |
Pillow section, CPR valve, panel lock, and EZ Lock/Quick Release tubing |
| Standards |
UL 60601-1; CAN/CSA C22.2 No. 601.1 |
| Warranty |
18 Month Limited Warranty |
Important Note: This therapeutic support surface should be selected and used as part of an individualized care plan. It is contraindicated for cervical or skeletal traction and unstable spinal cord injuries. Confirm bed-frame compatibility, dimensions, weight capacity, and clinical suitability before purchase.
What's Included
- Med-Aire Plus 14029DP mattress replacement
- 14029XP digital control unit
- Removable cover sheet
- Owner's manual
Product Manual and Brochure
Open the product documents for operating guidance and complete manufacturer information.
Med-Aire Plus Alternating Pressure Mattress FAQs
What does alternating pressure do?
The control unit repeatedly inflates and deflates groups of air cells to change where the body is supported. The care team can select 10, 15, 20, or 25-minute cycles.
How does low air loss work?
Low air loss supplies airflow through the mattress system to help manage heat and moisture around the support surface. The vapor-permeable cover works with the airflow system.
What does the defined perimeter do?
Static perimeter tubing creates a firmer boundary along both sides of the mattress and provides a more defined edge around the treatment surface.
What happens if the power goes out?
The static lower air-cell layer can retain air and provide support for up to 24 hours during a power outage.
What are AutoFirm and Seat/Fowler modes?
AutoFirm raises the mattress to maximum pressure for approximately 30 minutes. Seat/Fowler mode increases pressure when the user is placed in a seated position.
Who should not use this mattress system?
The system is contraindicated for cervical or skeletal traction and unstable spinal cord injuries. A qualified healthcare professional should determine whether this powered support surface is appropriate for the individual user.
You can also explore alternating pressure mattresses, pressure prevention and low air loss mattresses, or the full Drive Medical mattress collection.
