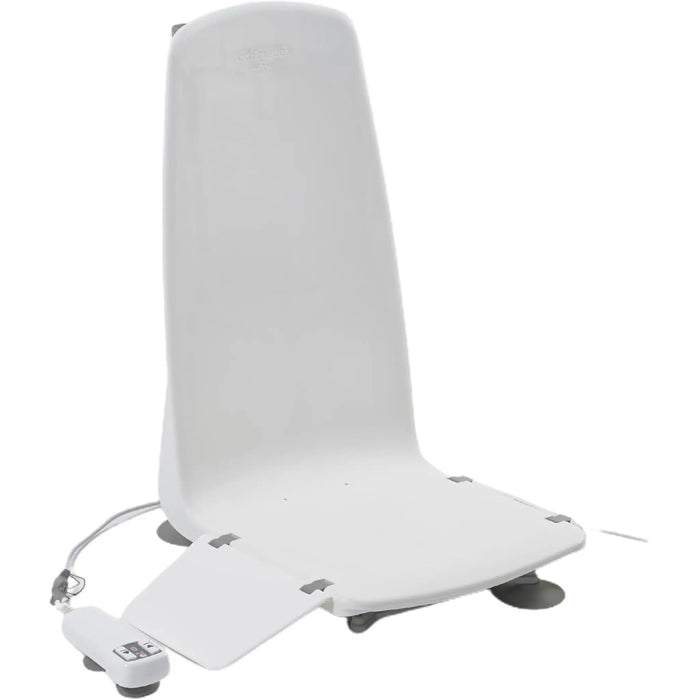

Mangar Archimedes Bath Lift: Enjoy the Bath Again with Greater Confidence
Getting into a bath can be difficult. Getting back out can be even harder. The Mangar Archimedes Bath Lift solves both problems with a supportive seat that lowers you toward the bottom of the tub and raises you back to the rim at the touch of a button.
This battery-powered Mangar bath lift is made for adults who find lowering, rising, balance, or stepping over the side of a bathtub difficult. It can also reduce the amount of lifting and handling required from a family member or caregiver. With a 364 lb weight capacity, a low 2.75-inch seat position, and a waterproof hand control, the Archimedes bath lift helps make a proper soak feel possible again.
Explore more Mangar Health products or compare this model with other bath lifts for home use.
Who Is the Mangar Archimedes Bath Lift For?
The Mangar Archimedes Bath Lift is suitable for someone who can transfer onto a seat positioned at bathtub-rim height, either independently or with assistance, but has difficulty lowering into the bath or standing back up from the bottom of the tub.
It is a practical choice for older adults, people with reduced mobility, and anyone whose strength, balance, flexibility, or stamina makes ordinary bathing difficult. It is also useful in shared bathrooms because the lift separates into three manageable sections and can be removed when the tub is needed by someone else.
Why Choose the Mangar Archimedes Bath Lift?
The Archimedes combines a supportive fixed-position seat with straightforward controls and sensible safeguards. It gives the user a controlled way to move down into the water and back up without a caregiver having to perform the full lift.
Everyday Reasons to Choose Archimedes
-

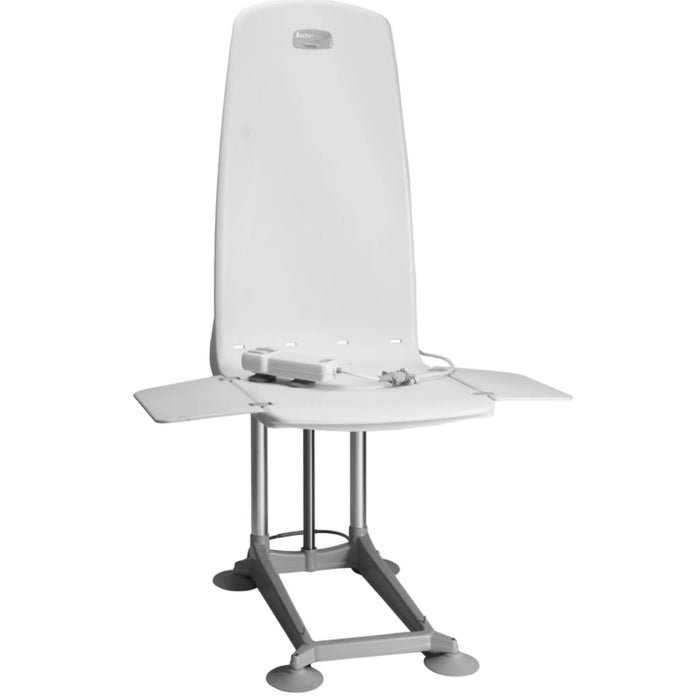

Powered lowering and lifting: hold the down or up button to move the seat and release it to stop.
-
Low bathing position: the seat lowers to 2.75 inches above the tub floor for a more immersive bath.
-
364 lb capacity: sturdy support in a complete unit weighing only 22 lbs.
-
Battery safeguard: the lift will not lower when the hand control lacks enough charge to raise the seat again.
-
Anti-pinch transfer flaps: flexible side flaps bend when they meet an obstruction.
-

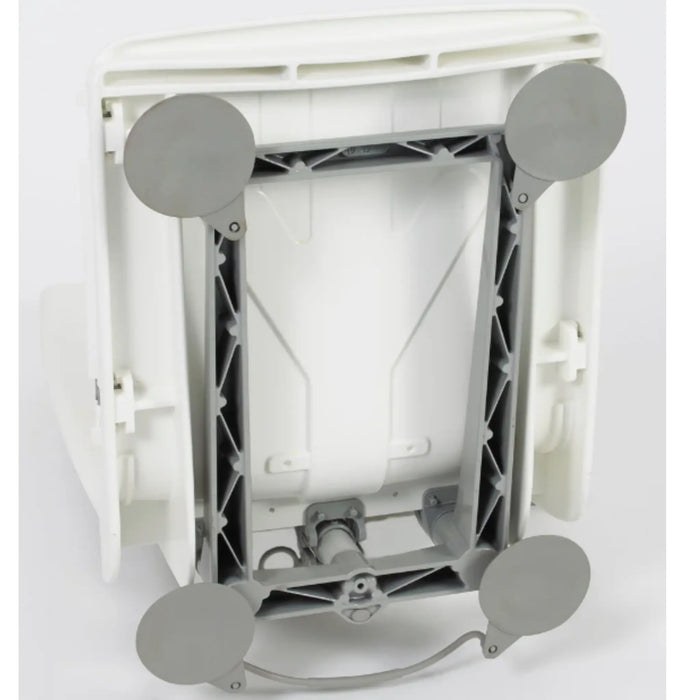

Stable placement: suction cups secure the base to the bathtub surface.
-
Three-piece construction: the seat, base, and actuator separate for easier handling, cleaning, and storage.
-
No bathroom power cable: the rechargeable battery is housed in the sealed hand control.

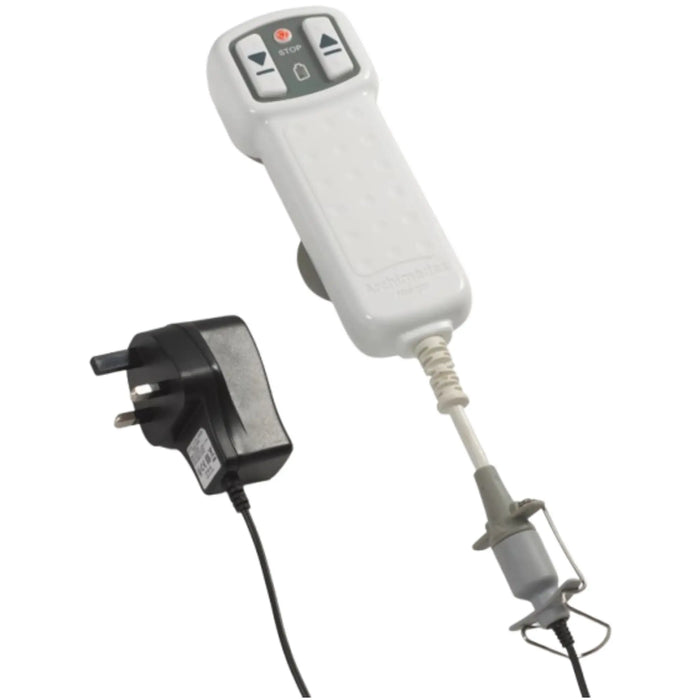

Simple Controls with a Built-In Battery Check
The sealed, waterproof hand control has large, easy-to-see buttons. Press and hold the down button to lower the seat. Press and hold the up button to return to bathtub-rim height. Let go of either button whenever you want the seat to stop.
A battery indicator shows the remaining charge. If the battery is too low to complete a return lift, the down function is disabled while the up function remains available. The hand control uses a rechargeable NiMH battery and carries an IP67 environmental protection rating.
Supportive, Stable, and Easy to Position
Strong suction cups hold the steel base in place during use. Flexible transfer flaps rest across the sides of the bathtub to create a broader surface for moving onto and off the seat. Their anti-pinch design helps prevent skin from becoming trapped between the seat and a flap during a transfer.
The lift sits toward the back of the tub to preserve leg room and avoid many bath handles and textured areas. It is intended for conventional bathtubs with enough room for the chair to travel freely through its full range.
Check your bathtub before ordering: exceptionally narrow tubs, curved sides or bases, protruding handles, soap dishes, and textured surfaces can affect fit or suction. Confirm that the 15.5-inch seat, 6.7-inch side flaps, 24-inch overall length, and full lifting path will fit without obstruction.

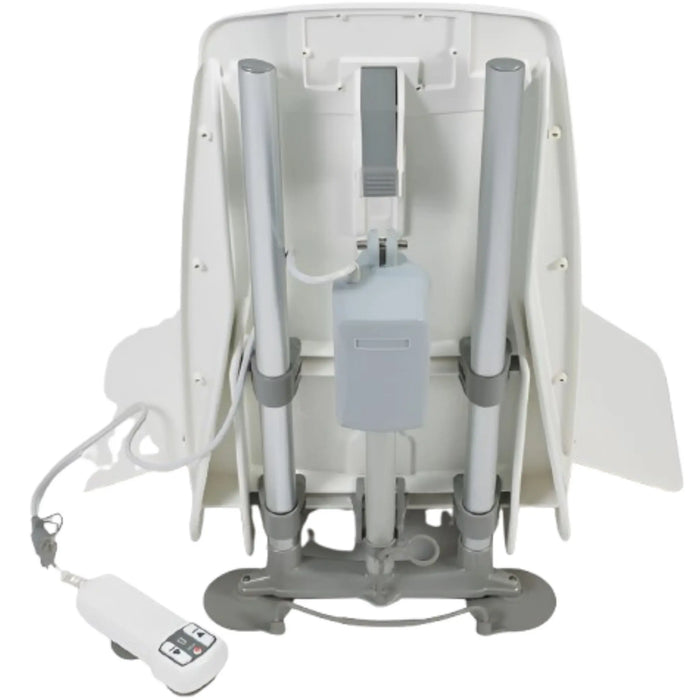

Three Lightweight Sections for Easier Handling
The complete Mangar bath lift weighs 22 lbs, but you do not have to handle it as one piece. It separates into an 11.5 lb seat section, a 6 lb base section, and a 4.5 lb actuator. This makes removal, cleaning, storage, and setup more manageable, especially when the bathtub is shared.
The steel base is straightforward to wipe clean, and the separate sections allow better access during routine cleaning. Always follow the user instructions for cleaning, battery charging, inspection, and safe reassembly.
What Is Included?
- Mangar Archimedes Bath Lift with two transfer flaps
- Sealed rechargeable hand control
- Battery charger
- User instructions
Mangar Archimedes Bath Lift Specifications
| Product Overview |
|---|
| Product |
Mangar Archimedes Bath Lift |
| Store SKU |
LAA3716 |
| Maximum user weight |
364 lbs (165 kg) |
| Total product weight |
22 lbs (10 kg) |
| Seat and Dimensions |
|---|
| Seat height range |
2.75 to 17 inches |
| Seat depth |
17 inches |
| Seat width, excluding side flaps |
15.5 inches |
| Width of each side flap |
6.7 inches |
| Total product length |
24 inches |
| Section Weights |
|---|
| Seat section |
11.5 lbs |
| Base section |
6 lbs |
| Actuator |
4.5 lbs |
| Power and Hand Control |
|---|
| Actuator power input |
12V, 7.5A |
| Battery type |
Rechargeable NiMH |
| Hand control output, maximum |
14V, 10A |
| Internal protection |
Self-resetting fuse |
| Environmental protection |
IP67 |
Manual, Product Sheet, and Quick-Start Guide
Review the fitting, charging, operation, cleaning, and safety instructions before using the lift for the first time.
Important Safety and Charging Notes
- Use the Archimedes only as a bathing aid inside a bathtub.
- Make sure the suction cups are firmly attached before every use.
- Keep the transfer flaps clear of handles, soap dishes, and other obstructions.
- Charge the hand control only with the supplied Mangar charger.
- Never recharge the battery in the bathroom, outdoors, or in a damp environment.
- Disconnect the hand control before transporting the lift to prevent accidental operation.
Warranty
The Mangar Archimedes Bath Lift includes a two-year limited manufacturer warranty against defects in materials and workmanship from the original purchase date. Normal wear, accidental damage, misuse, neglect, and unauthorized alteration or repair are excluded. Battery coverage may differ from coverage for the main unit, so review the warranty terms supplied with your product.
Mangar Archimedes Bath Lift FAQs
What problem does the Archimedes bath lift solve?
It helps a person who can sit at bathtub-rim height but cannot comfortably lower themselves to the bottom of the tub or rise back up. The powered seat handles that vertical movement with simple hand controls.
Who can use the Mangar bath lift?
It is intended for adults who need help lowering into and rising out of a bath and who weigh no more than 364 lbs. The user must be able to transfer onto and off the raised seat, independently or with suitable assistance.
How low does the Archimedes bath lift go?
The seat lowers to approximately 2.75 inches above the bathtub floor and rises to approximately 17 inches.
Can the lift leave someone stuck at the bottom of the tub?
The battery safeguard prevents the seat from lowering when there is not enough charge to raise it again. The hand control should still be charged regularly and checked before bathing.
Will it fit every bathtub?
No bath lift fits every tub. Very narrow tubs, curved bases, handles, soap dishes, and textured surfaces may affect the fit or movement. Measure the bathtub and confirm an unobstructed lifting path before ordering.
Can the Archimedes be removed from a shared bathtub?
Yes. It separates into three sections for removal and storage. The heaviest listed section is the 11.5 lb seat section.
For more ways to make daily routines easier, browse our wider range of bathroom safety equipment.
Ready to Enjoy a Proper Bath Again?
The Mangar Archimedes Bath Lift offers supportive seating, simple push-button movement, and practical safeguards in a lightweight three-piece design. Check your bathtub measurements, review the fitting guide, and order with confidence from First Class Mobility.
